ICG Connect - Specifications

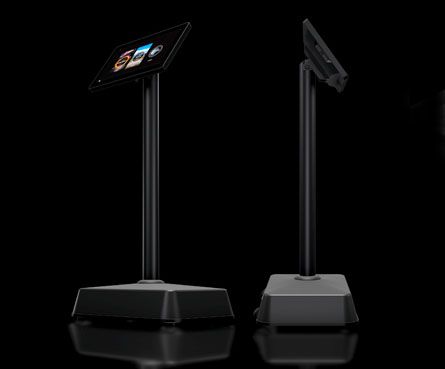

Unboxed and installed in the studio, the ICG Connect system collectively monitors, manages, and controls the group’s workout data to drive the connected experience.
• Adjustable Viewing Angle
• Easy plug and play
• Encased electrical components
• Multi-touch 15.6" HD captive screen

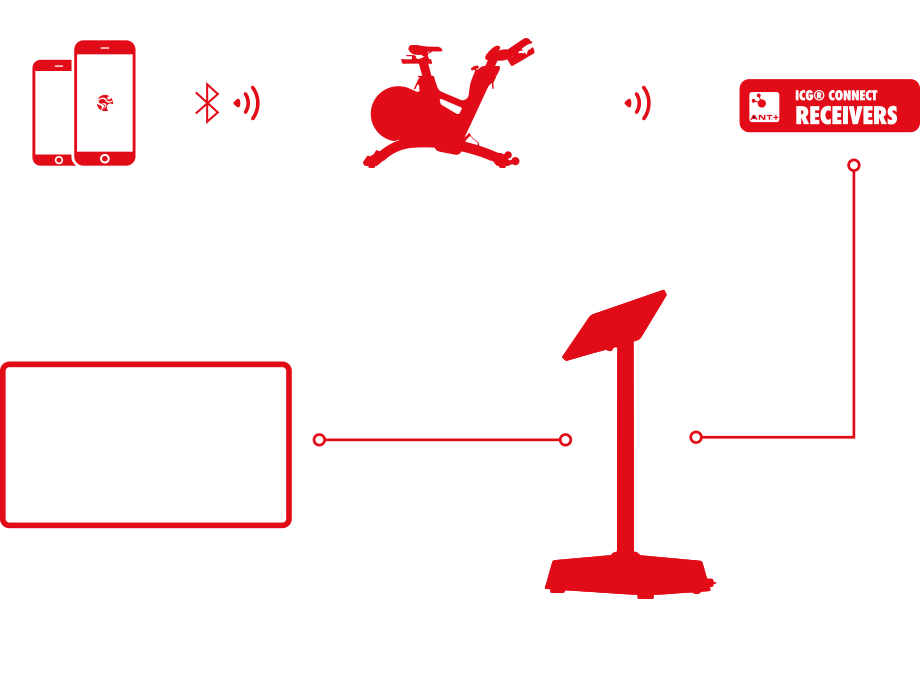

Connected Bikes.
Train smarter with up to 40 performance metrics transmitted every second to Connect, and displayed on the personal computer of each bike.
• IC5 Indoor Cycle
• IC6 Indoor Cycle
• IC7 Indoor Cycle
Connected App.
ICG® Training adjusts connected bikes to your members’ personal settings and identifies them to Connect. Participants can record activity, view results, and share with friends and coaches.
• A faster way to personalise connected bikes
• Personally identifies participants to connect for leaderboards
• Records activity and connects riders to friends and coaches beyond the class
Connected Training.
Instructors will receive guidance on Connect‘s Power, Heart Rate and QuickStart training modes to deliver inspired connected classes.
• Live Coach By Color® courses / Online resources
• Pre-designed workouts on ICG® Training
SPECIFICATIONS
| ICG CONNECT SYSTEM | |
|---|---|
| Assembled Dimensions | 53.5 x 36 x 116 CM / 22 x 14 x 46“ |
| Assembled Weight | 23 KG / 51 LBS |
| Operating System (OS) | ICG Customized Linux OS |
| Computer | AMD Ryzen R1505 APU |
| Aspect Ratio | 16:9 (external screen) |
| Screen Viewing Position | Adjustable - tilt & pivot (rotation) |
| Internet Connectivity | Wired, RJ45 LAN cable |
| Software Update | Wired internet / USB flash drive |
| USB 2.0 | 1 |
| HDMI 1.3 | 1 |
| Audio Port | 1 x 3.5mm input |
| Ethernet Ports (RJ45) | 3 |
| Display Type | 15.6“ touch screen |
| Power Requirements | 110 - 220v AC input |
| Levelling Feet | 2 |
| Transport Wheels | 2 |
| Warranty (Parts) | 1 Year |
